Descripción

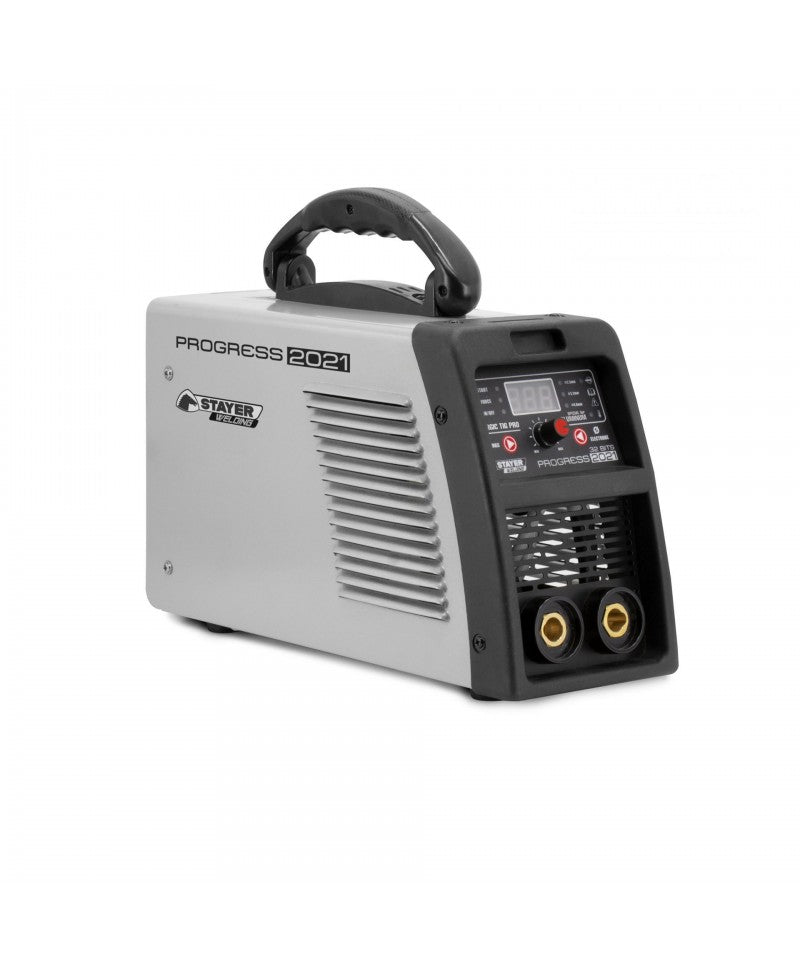

Superior 200 amp inverter equipment, with synergistic electronic adjustment for all types of electrodes, special for use with aluminum and TIG Lift Arc with intelligent adjustment.
CHARACTERISTICS
- Synergistic configuration based on electrode diameter, up to 5mm in diameter. Suitable for all types of electrodes.
- Latest generation components, top quality IGBTs and reinforced internal construction and improved and silent ventilation.
- It incorporates 4 diode bridges, providing stability and great power transmission.
- Complete control panel managed by STAYER software, with incremental adjustment of Arc Force and Hot Start, VRD On/Off.
- Synergic TIG PRO intelligent, when connecting the TIG torch it self-adjusts to TIG Lift Arc welding without contact with clean and quality ignition.
- Special for use of aluminum electrodes.
- Possibility of activating the VRD function, voltage reduction in the terminals under vacuum to maintain safety in humid environments, according to IEC 60974.
- Incremental regulation of Arc Force and Hot Start for coated electrodes of any type, obtaining better results in different types of welding.
- Easy to use, it has anti stick automatically configured by the STAYER software.
- Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee solid construction and safety of use.
- Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
SPECIFICATIONS
- Current: 200 A
- Power: 230V
- Electrode: 1.6 – 5 mm
- Use with generator: 7 – 9 KVA / 230V ±17%
- Gear Factor (30ºC): 60%
- Dimensions: 34.5 x 24 x 14 cm
- Weight: 5kg
- DINSE terminal: 1/2” (35 – 50) ø
- Power cable: 2m x 2.5 mm²
- Cable + Ground clamp: 1.5m – 25 mm²
- Cable + Electrode clamp: 2.5m – 25 mm²
- Hammer/Brush Included
- Briefcase included
- Code 1.2668
